Produktinformationen

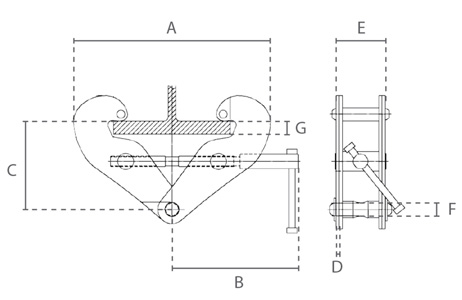

| Modell | WLL (Tonne) | Trägerbreite (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Gewicht (kg) |
| DC 1 | 1 | 75-220 | 180-360 | 215 | 102-155 | 5 | 74 | 22 | 3,8 |
| DC 2 | 2 | 75-220 | 180-360 | 215 | 102-155 | 6 | 74 | 22 | 4,6 |
| DC 3 | 3 | 80-320 | 235-490 | 260 | 140-225 | 8 | 103 | 24 | 9 |
| DC 5 | 5 | 80-320 | 235-490 | 260 | 140-225 | 10 | 110 | 28 | 11 |
| DC 10 | 10 | 90-320 | 320-505 | 260 | 170-225 | 12 | 120 | 40 | 16 |
| DC 20 | 20 | 90-370 | 512-713 | 431 | 315-361 | 16 | 196 | 70 | 39,6 |
Eigenschaften
- Artikelnummer
- BKL_DC-010.075220
- Herstellercode
- DC.0.0100001000
- EAN-Nummer
- 8719482247224
- Gewicht
- 4.5
- Marke
- DELTA
