Produktinformationen
Technische Daten

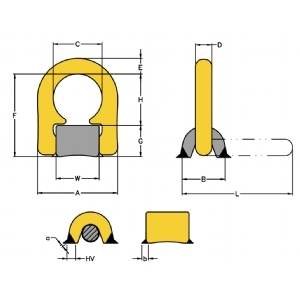

| Abmessungen (mm) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tragfähigkeit (t) | A | B | C | D | E | F | G | H | L | W | HV | a | Gewicht (kg) |
| 1.0 | 83 | 41 | 48 | 14 | 14 | 86 | 27 | 58 | 109 | 50 | 5 | 3 | 0.5 |
| 3.0 | 98 | 48 | 58 | 17 | 17 | 85 | 31 | 54 | 114 | 58 | 6 | 3 | 0.9 |
| 5.0 | 120 | 63 | 66 | 22 | 22 | 118 | 41 | 77 | 157 | 64 | 7 | 3 | 1.3 |
| 8.0 | 121 | 73 | 68 | 26 | 26 | 122 | 53 | 69 | 169 | 60 | 10 | 4 | 2.4 |
| 10.0 | 146 | 73 | 82 | 20 | 30 | 141 | 53 | 88 | 191 | 75 | 10 | 4 | 2.8 |
| 20.0** | 186 | 93 | 100 | 25 | 37 | 175 | 70 | 105 | 234 | 91 | 20 | 4 | 6.5 |
| 30.0** | 254 | 116 | 150 | 35 | 45 | 241 | 84 | 157 | 317 | 127 | 20 | 4 | 17.2 |
Eigenschaften
- Artikelnummer
- ALO_YOKAP-01
- EAN-Nummer
- ALO_YOKAP-01
- Gewicht
- 0.5
- Marke
- Yoke
